Multi-turn Actuator FA01 ~ FA10 suitable for Globe valves, Gate valves, sluice valves, penstock and some dampers.
FA01 ~ FA10 combined with BA bevel gearbox max can reach 100,000Nm.
FA01 ~ FA10 combined with worm gearbox for large torque ball valves, butterfly valves and dampers,max can reach 400,000Nm
Multi-turn Actuator FA01 ~ FA10 torque from 45Nm to 2500Nm (35ft-lbf to 1843ft-lbf).
Voltage Supply: 110Vac ~ 660Vac, 50Hz/60Hz, single or three phase.
Enclosure Protection: IP68, Double-seated structure.
Isolation : Class F, Class H (optional)
Output Speed: 18/21rpm ~ 144/173rpm,
Optional Function:
Modulating I/O signal 4 - 20mA (FAM01 ~ FAM06)
Explosion Proof(ATEX,SIL,CUTR)
Fieldbus System: Modbus, Profibus, etc.
Multi Turn Actuator
Standard Quarter Turn Electro Hydraulic Actuator
Quarter turn Electro-Hydraulic Actuator FV series is installed on the automation of part turn valve, like ball valves and butterfly valves. Output torque 60Nm~120KNm(45ft-lbf to 88495ft-lbf) Fast response speed(5Hz), high control accuracy(＜0.1% of full stroke) Optional Function: Modulating I/O signal 4-20mA Explosion Proof(EexdIIBT4, ExdIICT4) Fieldbus System: Modbus, Profibus, etc.
Smart Quarter Turn Intelligent Actuator
Quarter turn Actuator FR/FRM5 ~ FR/FRM100 are suitable for ball valves and butterfly valves.
Quarter turn Actuator FR/FRM5 ~ FR/FRM100 can be combined with lever if it is required..
Quarter turn Actuator FR5 ~ FR100 torque range is from 50Nm to 500Nm (40ft-lbf to 370ft-lbf)
Voltage Supply: 220Vac ~ 460Vac, 50Hz/60Hz, single or three phase.
Enclosure Protection: IP67
Isolation: Class F, Class H (optional)
Optional Function:
Modulating I/O signal 4-20mA
Fieldbus System: Modbus, Profibus, etc.
Linear Electric Valve Actuator
Linear Actuator FMD01 ~ FMD05 are suitable for control valves, such as Globe valves.
Linear Actuator FMD01 ~FMD05 modulating thrust range is from (8.1KN-45.5KN)
Voltage Supply: 110Vac ~ 660Vac, 50Hz/60Hz, single or three phase.
Enclosure Protection: IP68, Double-seated structure.
Isolation: Class F, Class H (optional)
Output Speed: 18/21rpm ~ 96/115rpm,
Optional Function:
Explosion Proof(ATEX, CUTR)
Fieldbus System: Modbus, Profibus, etc.
Standard Linear Electro Hydraulic Actuator
DESCRIPTION
Separate Mounting Linear Electro-Hydraulic Actuator FK series is installed on the automation of control valves, such as Globe valves. It is more simple than hydrualic actuator, can realize all function of hydraulic actuator.
·Output torque 6KN~600KN
·Fast response speed(5Hz), high control accuracy(＜0.1% of full stroke)
·Adopt advanced servo controller and servo motor
·Adopt advanced hydraulic pump
·Adopt screw rotary cylinder which is with small size and high torque feature
·Non-intrusive design, infrared setting and configuration
·Friendly Human Machine Interface, which can display position, pressure, diagnosis and error
·Detailed data and log function
·Relief valve and pressure sensor can provide over pressure double protection
·Open/close valve within 1 second when failure
·Open/close/stay put when power failure
·Zero leakage, less maintenance, high reliability
·Optional Function:
Modulating I/O signal 4-20mA
Explosion Proof(EexdIIBT4, ExdIICT4,SIL)
Fieldbus System: Modbus, Profibus, etc.
Separated Mount Linear Electro Hydraulic Actuator
Separate Mounting Linear Electro-Hydraulic Actuator FK series is designed to install on some special location, users can control valve open/close from long distance away,it can also used for space limited application. The actuator feature is as same as standard electro hydarulic actuator. The distance between control box and valve can be designed according project requirement.

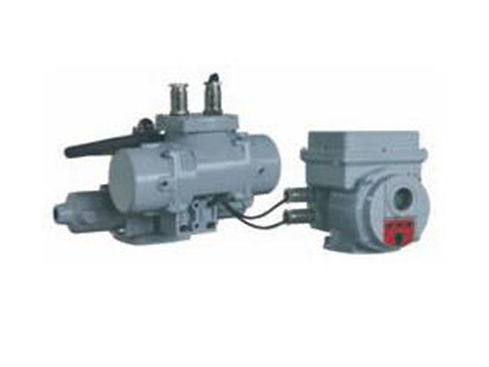

Separated Mount Quarter Turn Electro Hydraulic Actuator
Separated mount Quarter turn Electro hydraulic actuator is designed for location not easy to access or install, like high vibration or corrosive enviroment, separated actuator has no function difference with standard actuator, the protection of cover also can meet ATEX or water tight requirement. The separate mount distance can design according client's requirement.
